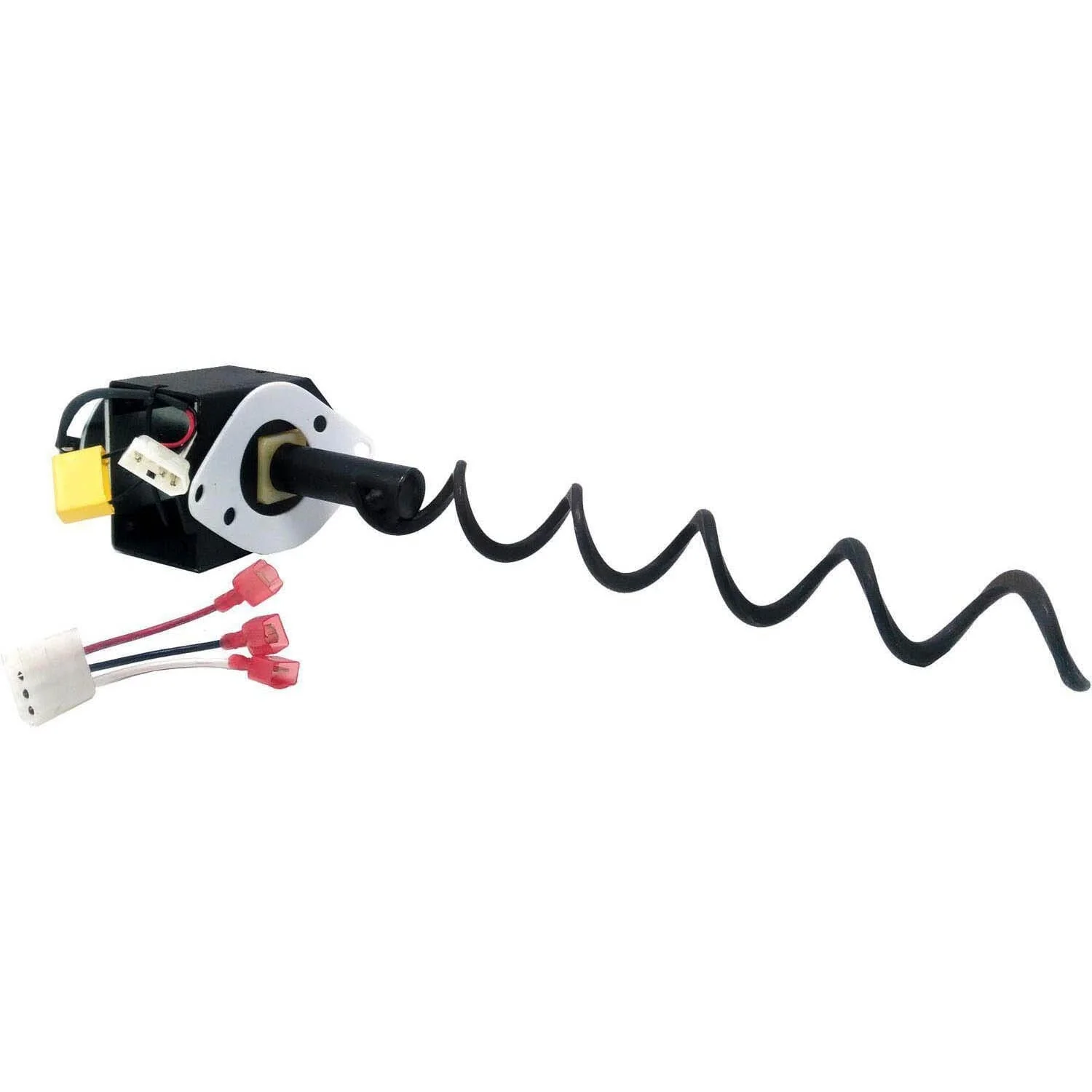

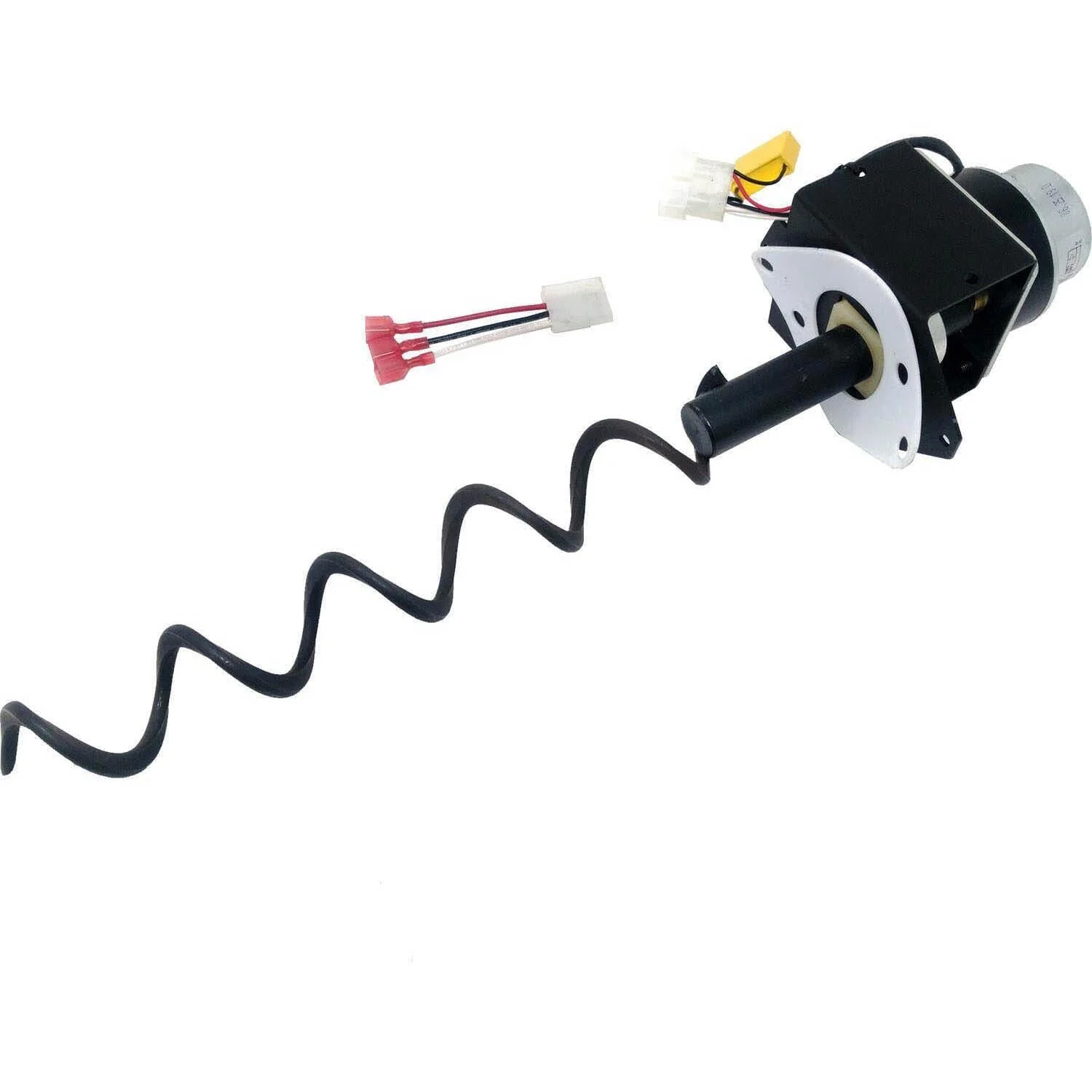

Quadra-Fire Feed Motor Assembly: 812-4760-AMP
This Quadra-Fire feed motor assembly is used on all models variations for the Castile, Sante Fe, Santa Fe Insert, Mt Vernon Stove (Pre AE) and, the Contour.
This assembly is also used for the Castile Insert-B and the Castile Insert-C made between 2011-2019.
This whole assembly is a compatible fit for all of the stoves we just listed when it is installed completely as a whole assembly.
This assembly has updates to the bearing and the motor bracket which ARE NOT COMPATIBLE with older feed assembly parts.
This assembly includes the following parts:
- 4 x 8-32 x 3/8'' Black Oxide ScrewsÂ

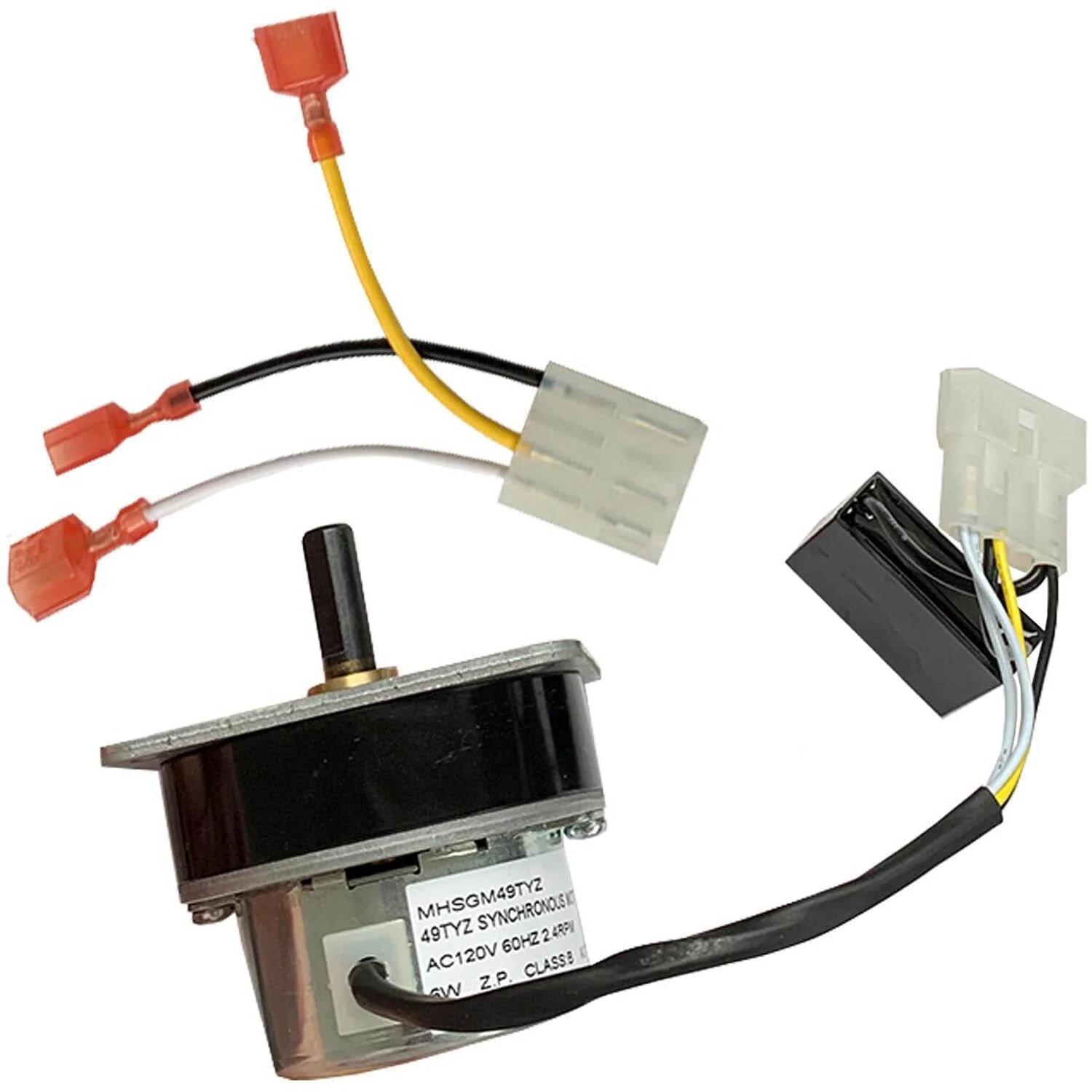

- 1 x 2.4 RPM Auger Feed Motor (812-4421)
- 1 x 7/8'' Auger Collar with Set Screw (229-0520)
- 1 x Nylon Auger Bearing (SRV7000-598)

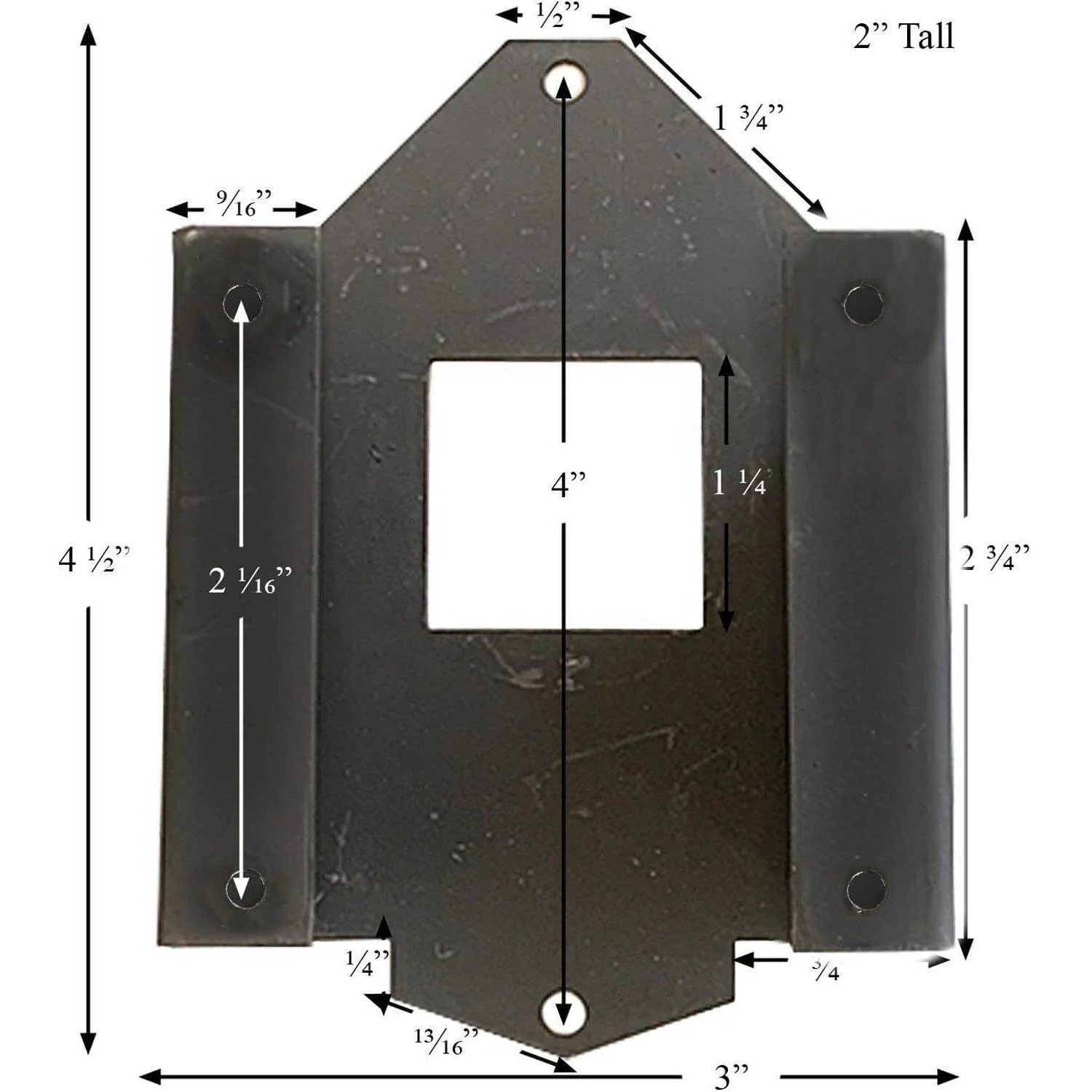

- 1 x Feed Motor Bracket (7001-039)
- 1 x Feed Motor Gasket (SRV240-0731)

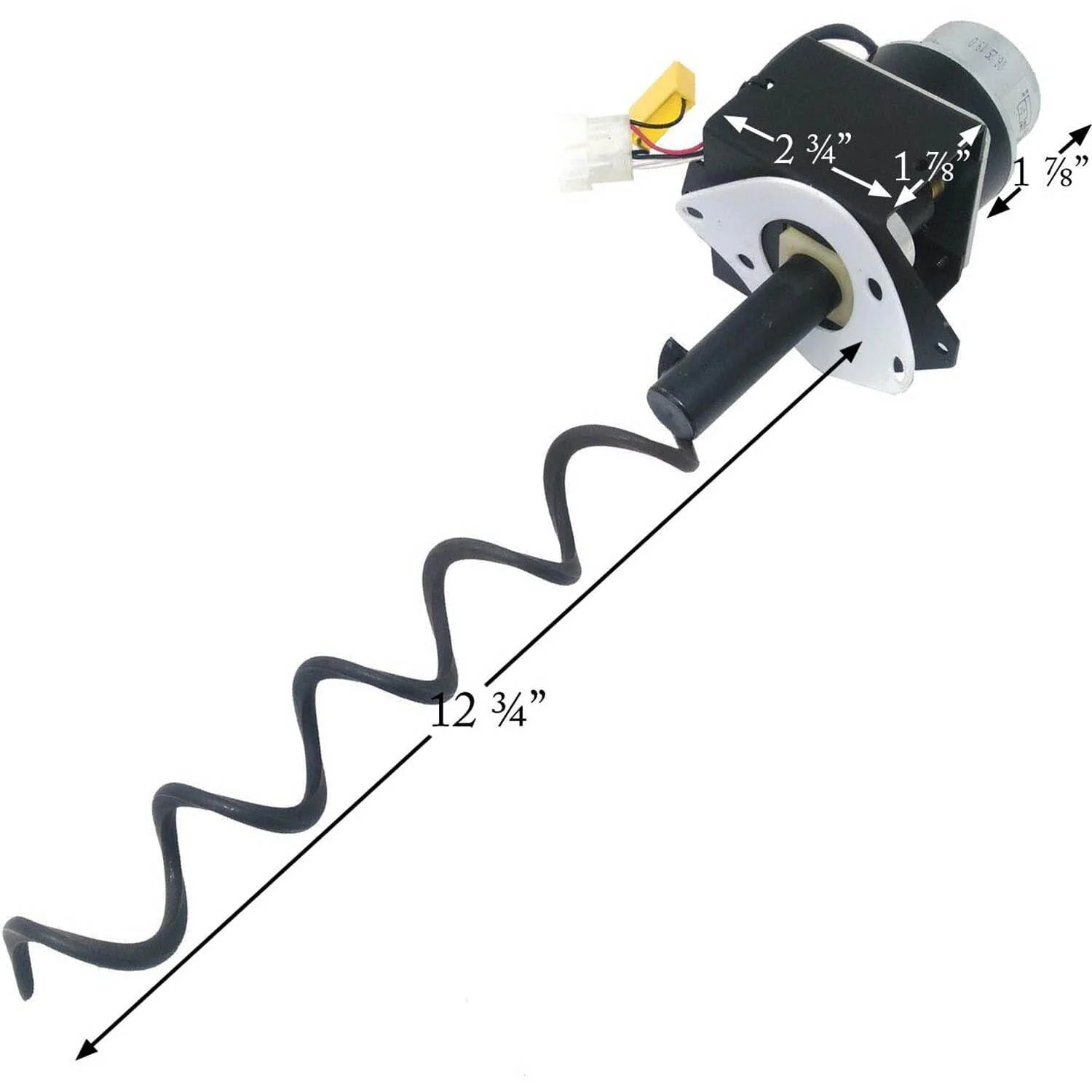

- 1 x Feed Spring / Auger Shaft 14.5'' (SRV7001-046)Â
This kit uses aftermarket parts where applicable to help you save big!
