Harman Pellet Stove Repair Kit (CONTROL BOARD NOT INCLUDED)
This kit contains all the shared common replacement parts for most Harman pellet stoves and inserts. See our compatible stoves tab for a complete list. Having this kit on hand can be a life-saver when your stove breaks down. The kit contains many common repair parts you may need in the event of an unexpected breakdown during the heating season. This kit uses aftermarket parts where applicable to help you save big!
Notes:
- This kit does not include a distribution blower because each model had a slightly different blower.
- This kit includes 3 versions of the impeller fan blade for the combustion blower motor, because each model requires a specific size.

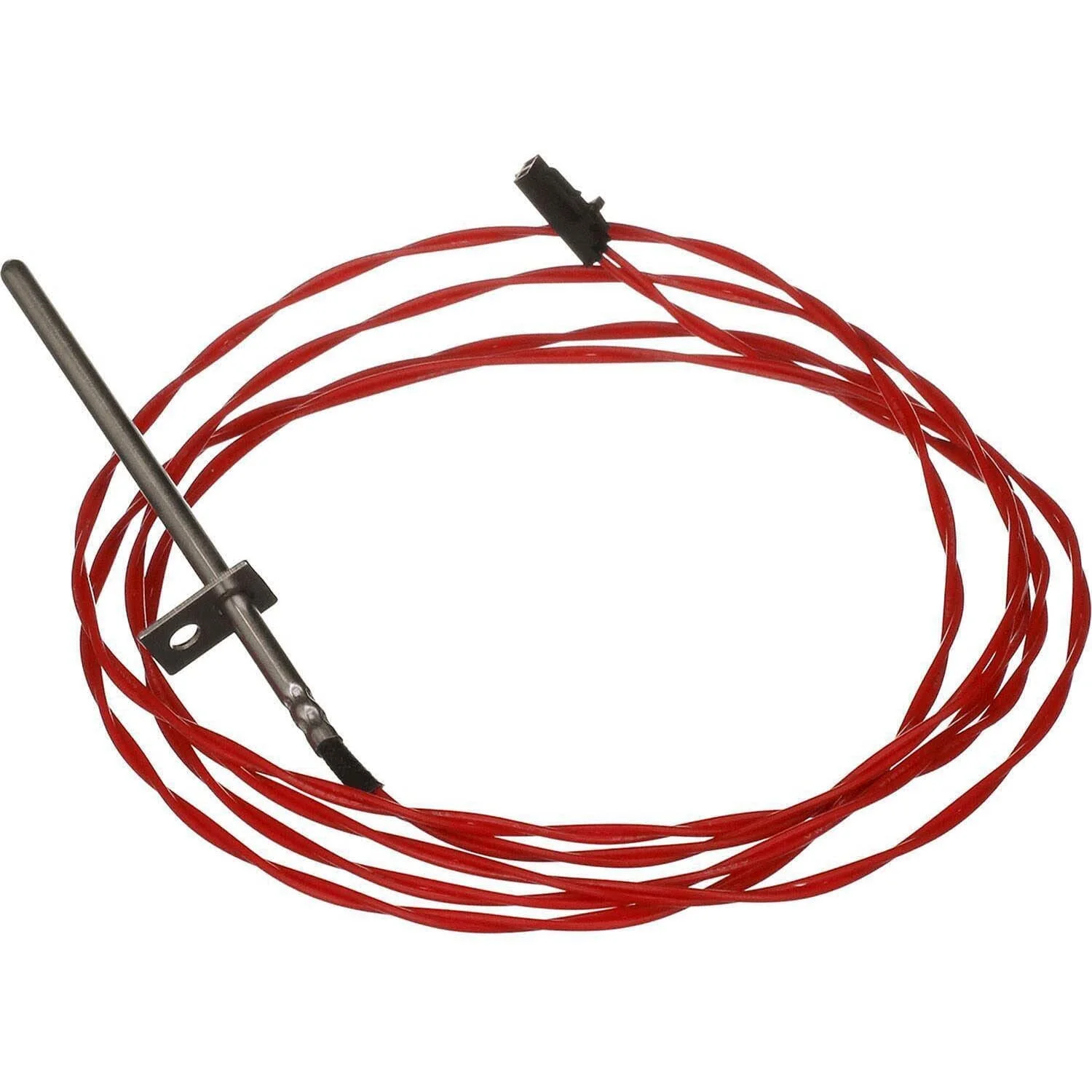

- 1 x Red ESP Probe, 3-20-00844
- 1 x Black ESP Probe, 3-20-11744

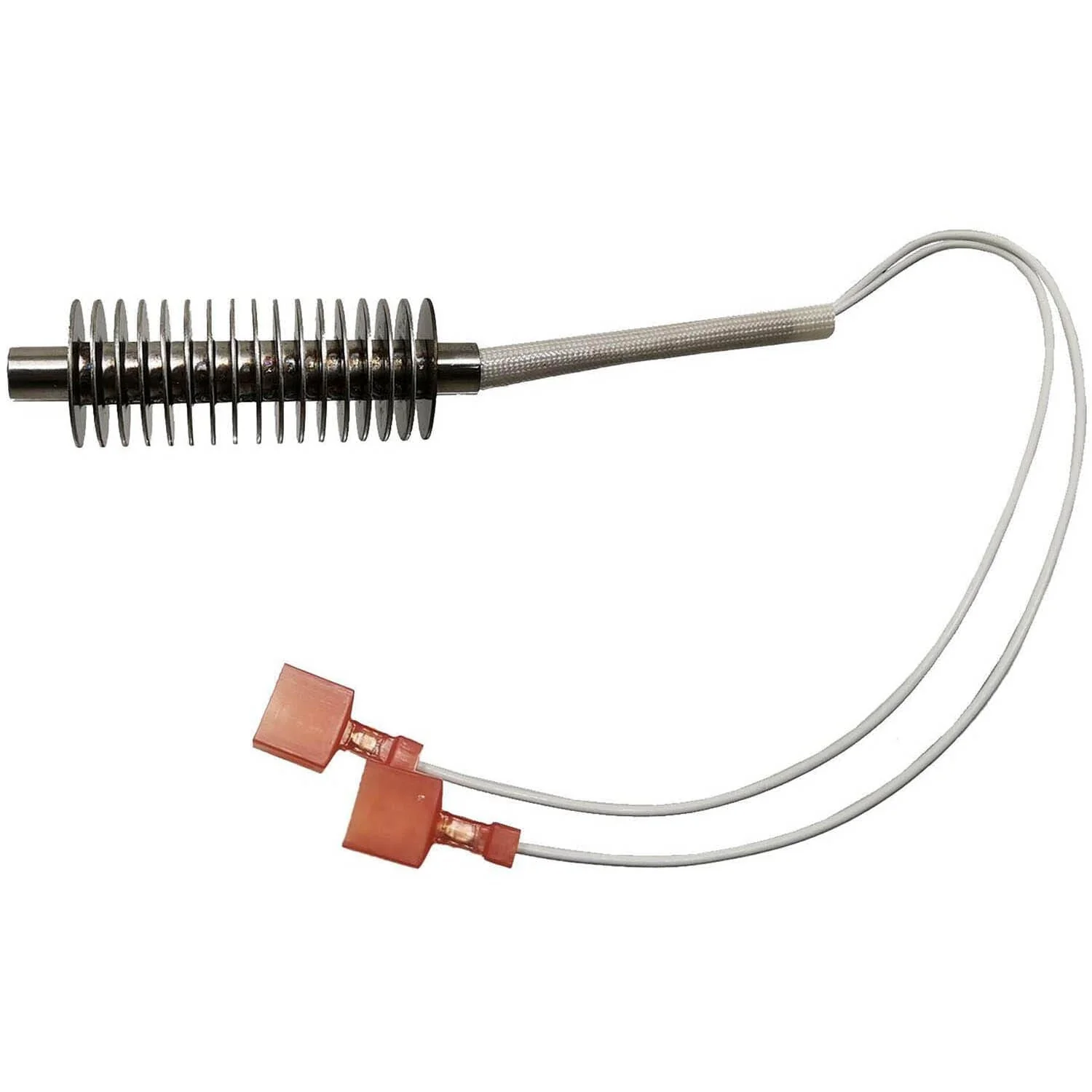

- 1 x Igniter, 3-20-677200
- 1 x Temperature Sensor, 3-20-00906
- 1 x Pressure Sensor Vacuum Switch, 3-20-6866
- 1 x Pressure Sensor Vacuum Hose, 1-00-5113574

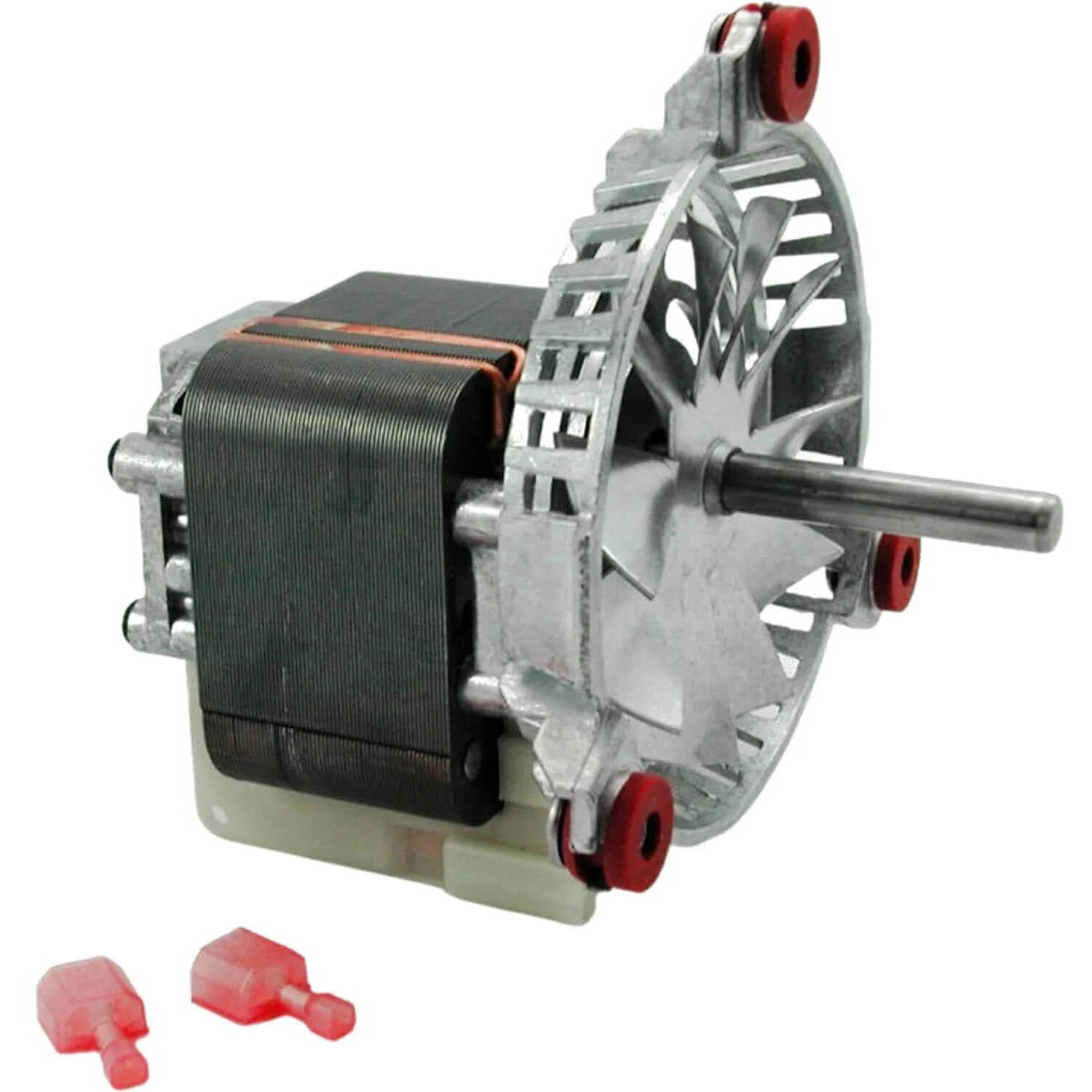

- 1 x Exhaust Blower, 3-21-08639
- 1 x Control Board Knob & Shaft, 1-00-015605
- 1 x Burn Pot & Tailpipe Gasket Kit, 1-00-07381
- 1 x High-Temperature Silicone, RTV650
- 1 x Door & Ash Pan Gasket (3/8" x 20FT): 1-00-00888-20
- 1 x Harman Glass Gasket (1/4" x 7.5FT): 1-00-2312

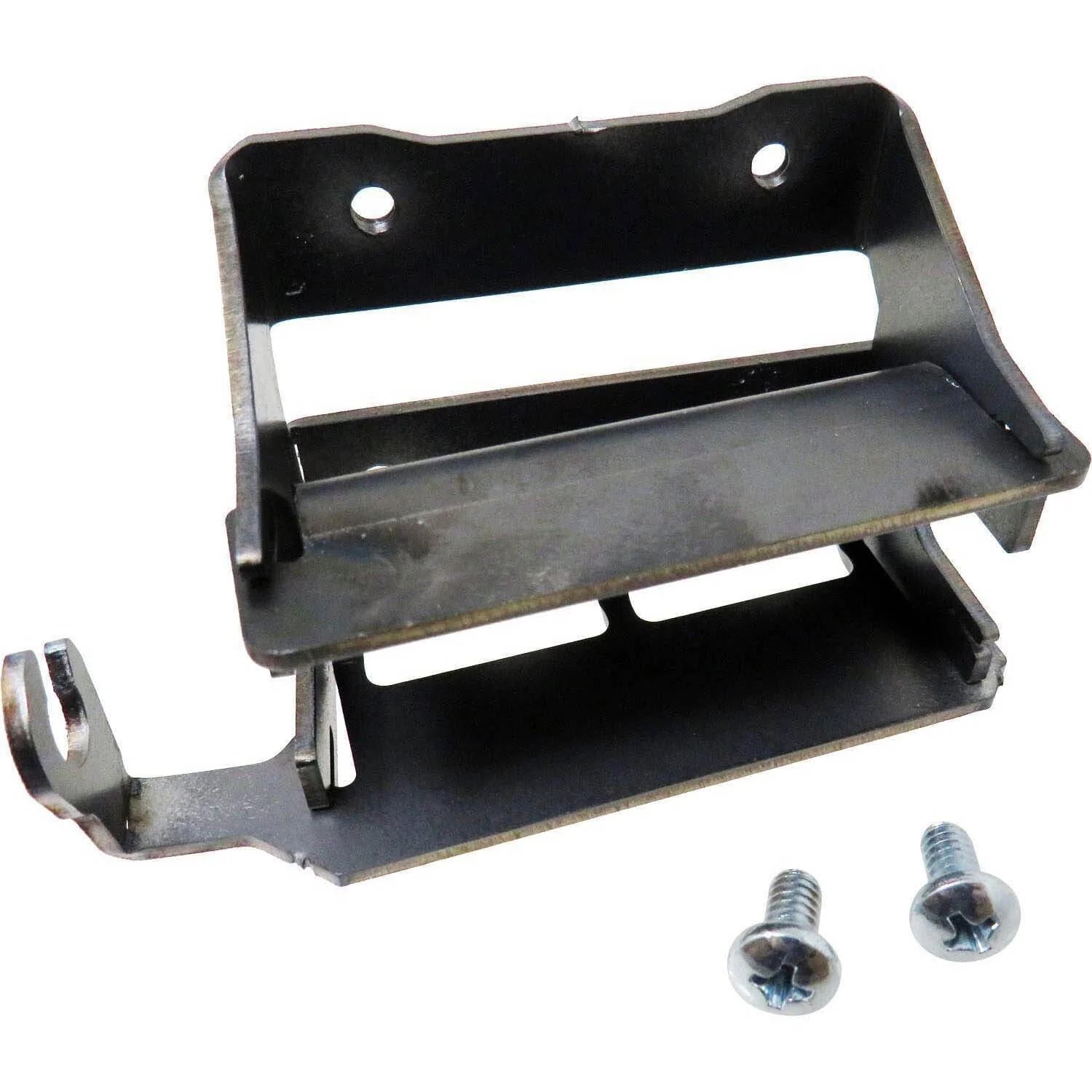

- 1 x Igniter Cradle, 1-00-777907
- 1 x 6-AMP Fuse, 3-20-49446
- 2 x Burnpot Cover Wing Screw, 3-31-782108
- 4 x Combustion Blower Mounting Screw, 1-00-53483208
- 6 x Combustion Blower Locking Nuts
- 1 x 5" double-sided impeller, 3-20-502221
- 1 x 4-3/4" impeller, 3-21-00661
- 1 x 5" single paddle impeller, 3-20-40985
Note: This kit comes with 3 different impellers. Harman uses 3 different sized impellers to fine-tune how much air is moved through the stove. It is advisable to also replace the impeller when replacing this blower as the old impeller from your existing blower may not come off the shaft (seized) or it may be damaged in the process of removing the blower.
- 3-20-502221 : 5" double-sided impeller is used on most freestanding stoves.
- 3-21-00661 : 4-3/4" impeller is used on Harman Accentra Insert, P35i and P35i-C Insert, and the PF120 Pellet Furnace.
- 3-20-40985 : 5" single paddle impeller is used on Harman Accentra FS, Pellet Pro II, Invincible T, PF100, BA100, and PC45.
