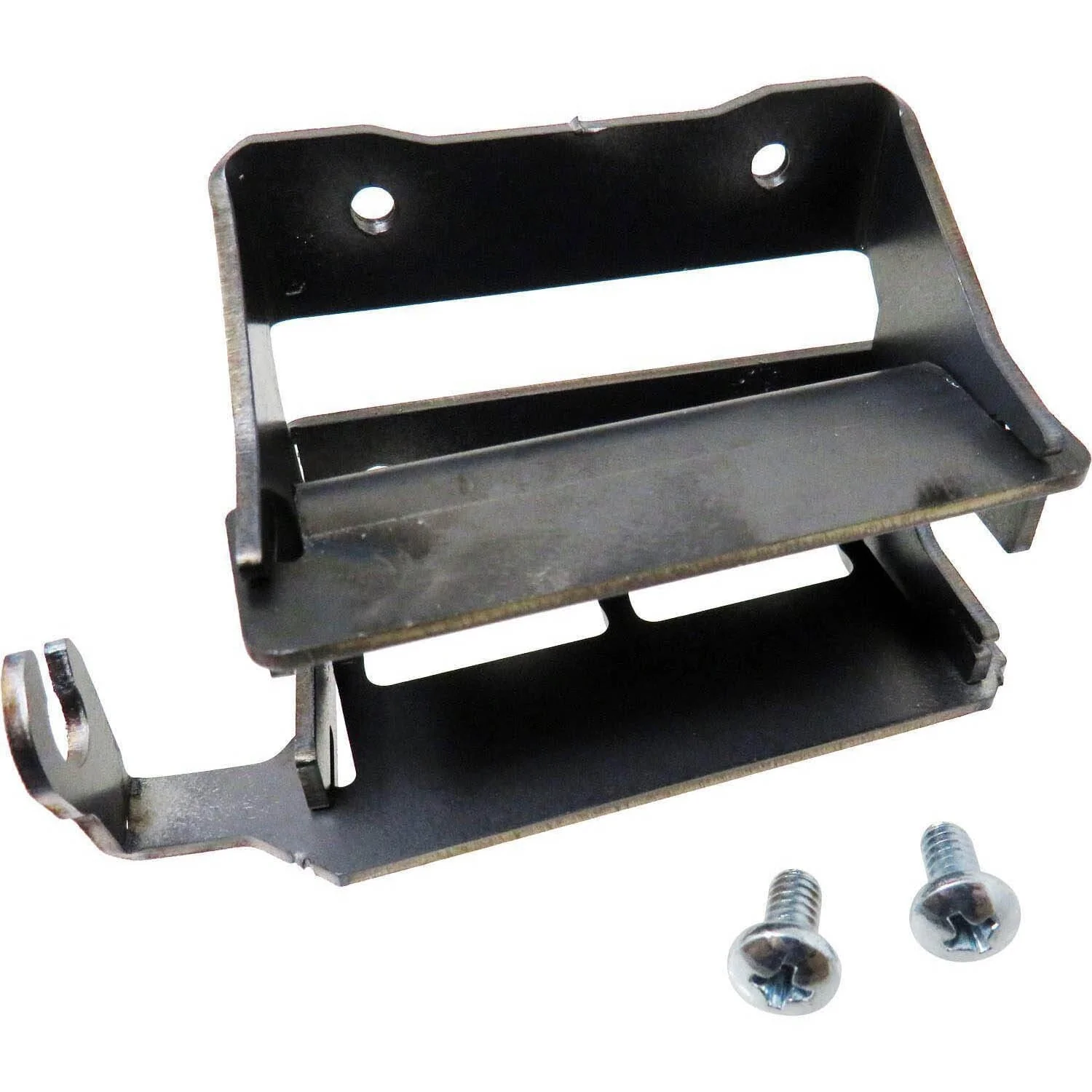

Harman Adjustable Igniter Cradle (Updated): 1-00-777907
Harman Adjustable Igniter Cradle (Updated). This cradle can be used on any units using finned igniters and is backward-compatible with all auto-ignition models that previously used part # 1-00-067620, which is being phased out by Harman.
Important: Do not... overtighten the screws that press the adjustable plate against the bottom of the igniter. Overtightening these screws will cause the cradle to push away from the bottom of the burn pot, causing ignition issues.
If you have recently installed a new cradle and are experiencing delayed or missed ignition you should loosen the screws on the ignitor plate, loosen and retighten the cradle mounting screws and then *gently* snug/tighten the ignitor plate screws.
If the ignitor plate screws have been overtightened the cradle can be bent and may need to be replaced.
This cradle is not compatible with the new style PF100 Burn-pot: 1-10-73560.
This cradle is sold without mounting hardware and your existing screws must be reused. New screws can be purchased using Harman part# 3-30-1101-100, QTY 2.
Notes:
- Accentra52i / Accentra52i-TC ONLY use this cradle when using burn pot 1-00-574605
- Absolute43 uses cradle part # 1-00-777906
The diagram below shows where this part is used, Fig.1.3
Original: $79.99
-70%$79.99
$24.00More Images
